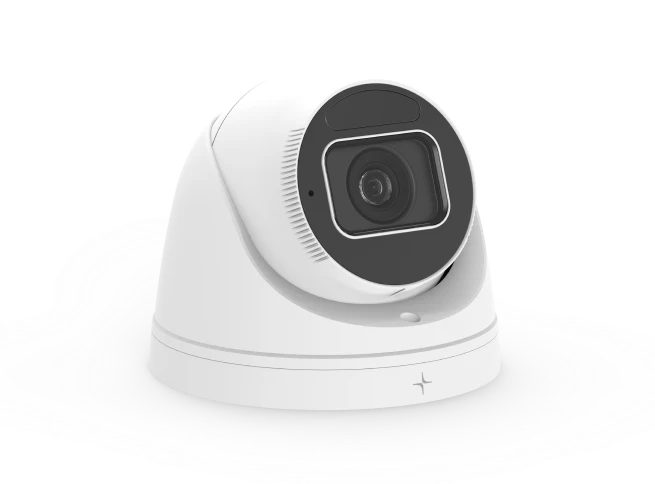

5MP Zoom Turret
Specs
Camera features
Image sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Sensor resolution
2880 x 1620px
Lens type
Zoom
Focal length
2.8 - 12mm
Aperture
F1.6
Field of view
H: 63.7°
V: 32.7°
D: 64.0°°
Sensor movement
Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotate: 0° ~ 360°
Shutter speed
1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR range
Up to 40m (131ft)
WDR
120dB
Audio
Supported
Interface
Built in microphone
Standard video settings
Compression
Ultra 265, H.265, H.264, MJPEG
Frame rate
30fps
Bitrate
128 Kbps~6144 Kbps
9:16 corridor mode
Supported
Historical video settings
Dynamic Storage
White balance
Auto/Outdoor/FineTune/
Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Flip
Normal/Vertical/Horizontal/ 180°/90°Clockwise/90°Anti-clockwise
Power and network
Power input
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
6KV
Connectivity
1 x RJ45 10M/100M Base-TX Ethernet
1 x Ø 5.5mm coaxial power plug
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible integration
ONVIF, API, SDK
