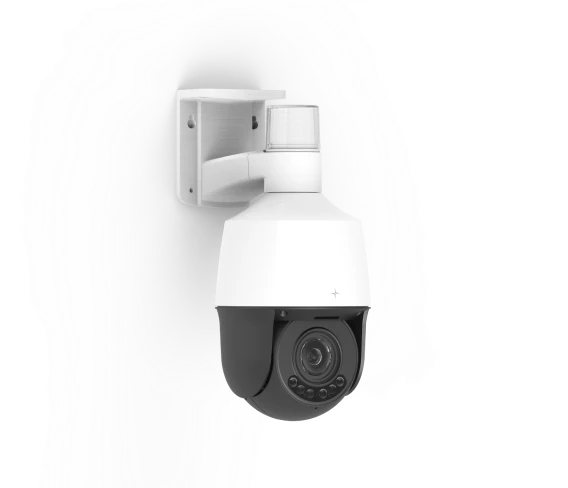

5MP Pan-Tilt-Zoom
Specs
Camera features
Image sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS
Sensor resolution
2880 x 1620px
Lens type
5x optical zoom
Focal length
2.7 - 13.5mm
Aperture
F1.8
Field of view
H: 106.9° ~ 30.6°
V: 56° ~ 17.7°
D: 131.5° ~ -36.1°
Sensor movement
Pan: 0° ~ 345°
Tilt: -10° ~ 100°
Shutter speed
1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR range
Up to 50m (164ft)
WDR
120dB
Audio
Two-way
Standard video settings
Compression
Ultra 265, H.265, H.264, MJPEG
Frame rate
Max 30fps
Bitrate
128 Kbps ~ 16Mbps
Smart IR
Supported
Historical video settings
Dynamic Storage
White balance
Auto/Outdoor/Fine Tune/
Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Flip
Normal/Flip Vertical/
Flip Horizontal/180°
Power and network
Power input
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
18W
Connectivity
Ø 5.5mm coaxial power plug
Protocols
TLS1.3; SSH; IGMP; RTP; RTCP; SMTP; IPv4; IPv6; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS;
SSL/TLS
Compatible integration
ONVIF (Profile S, Profile G, Profile T), API
